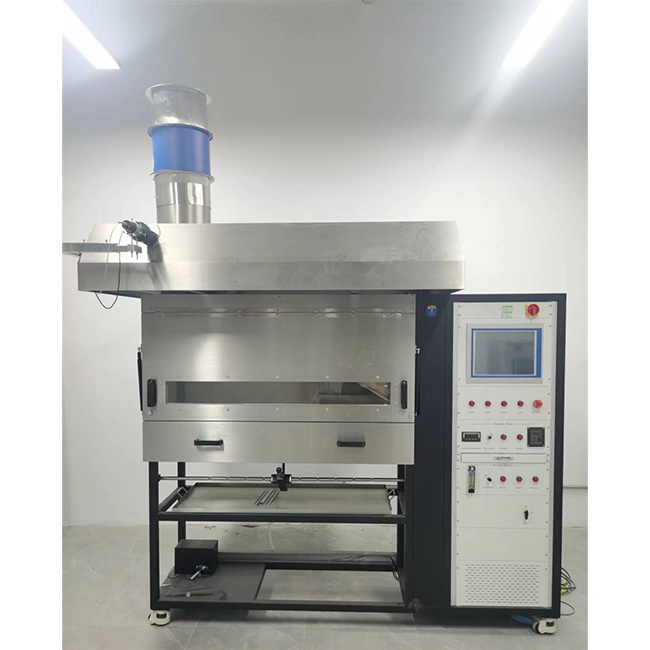

ISO 9239 Flooring Radiant Panel Fire Resistance Test Apparatus

The ISO 9239-1 Flooring Radiant Panel Test Apparatus is a state-of-the-art device designed for evaluating the fire resistance and burning behavior of flooring materials, including textile carpets, wood flooring, rubber flooring, and plastic coverings. Compliant with international standards, this advanced testing machine measures critical radiant flux, flame spread, and smoke generation under controlled radiant heat conditions.

• ISO 9239-1:2010 - Reaction to fire tests for floorings
• ISO 9239-2: Reaction to fire tests for floorings
• ASTM E648: Standard Test Method for Critical Radiant Flux
• ASTM E970: Standard Test Method for Critical Radiant Flux
• NFPA 253: Standard Method of Test for Critical Radiant Flux
• GB/T 11785: Determination of burning properties

This testing apparatus is suitable for evaluating the flammability and flame spread characteristics of various flooring materials:

• Textile carpets
• Cork and wood flooring
• Rubber flooring and plastic coverings
• Cellulose insulation flooring materials
• Composite flooring materials
• Horizontal surfaces in rail vehicle interiors (per EN 45545-2)

• Stainless steel test chamber with front-opening door for easy cleaning
• Calcium silicate board interior walls for high-temperature resistance
• 300mm x 450mm porous ceramic heat radiant plate at 30-degree angle
• T-shaped porous burner with cylinder-driven mechanism
• Optical system with 2900 ± 100 K color temperature incandescent lamp
• Computer-controlled shutter system for calibration
• Digital gas flow control with mass flowmeter
• SB water-cooled heat flow meter (0-50 kW/m² range)
• 15-inch industrial touchscreen computer for test monitoring
