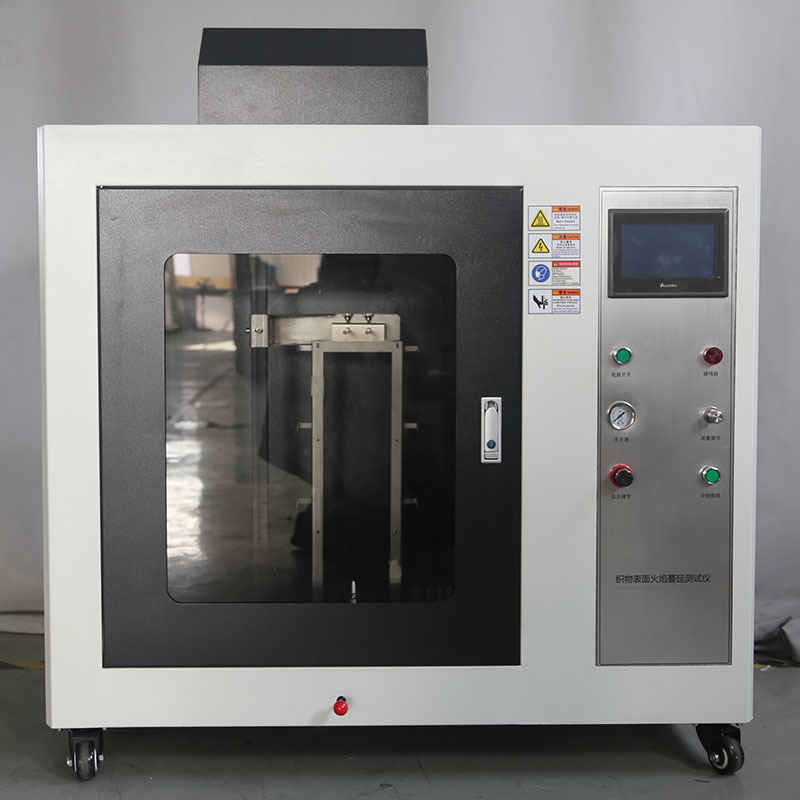

ISO 15025 Protective Clothing Flame Spread Tester with Digital Display

BS EN ISO 15025 Protective Clothing Textile Fabrics Flame Spread Test Machine

ISO 15025 Protective Clothing Flame Spread Tester Product introduction:

Designed and manufactured in accordance with the ISO 15025 standard for flame testing of protective clothing, the Protective Clothing Flame Spread Tester measures the flame spread of protective clothing under the impact of a small flame. This specialized instrument is primarily used to simulate the flame spread performance of protective clothing when assessing the fire hazard of the garment. It is used to determine the fire hazard of fabrics and other flammable materials with similar functional uses.

ISO 15025 Protective Clothing Flame Spread Tester standard:

BS EN ISO 15025:2002 Protectiveclothing-Protection against heat and falme-Method of test for limited flame spread

ISO 15025 Protective Clothing Flame Spread Tester Specifications:

ISO 15025 Protective Clothing Flame Spread Tester Features​:

1. Combustion chamber made of stainless steel; elegant and corrosion-resistant. Dimensions: 1200mm x 600mm x 1200mm.
2. All specimen holders are made of stainless steel; elegant and corrosion-resistant.
3. Standard burner; flame height: 25mm ± 2mm horizontally; 40mm ± 2mm vertically; nozzle opening: 0.19mm.
4. Automatic time recording and storage; timer accuracy: 0.1s.
5. PLC control system with touch screen for more intelligent testing; automatic data recording and storage.
6. Imported pressure gauge and regulating valve for more stable gas pressure.
7. Imported needle valve for precise flame height control and more stable flame.
8. Highly intelligent, simple and easy to operate.
9. Equipped with two sets of specimen holders for surface combustion and bottom combustion, both made of stainless steel.
10. Automatic system ignition and extinguishing.
11. Equipped with a flame height gauge.
12. Pulsed high-voltage electronic automatic ignition.
13. Timer button with PLC automatically records and stores combustion time. 14. No need for a handheld stopwatch or handwritten timing; the test time is automatically recorded and a test report is generated.
15. The test time and ignition time can be set on the touchscreen, meeting the requirements of various test standards.
16. The surface burning and bottom edge burning test programs can be switched on the touchscreen.

Randomly equipped accessories:

1. 304 stainless steel flame height ruler
2. 2 trachea clamps
3. Product manual
4. Factory certificate
