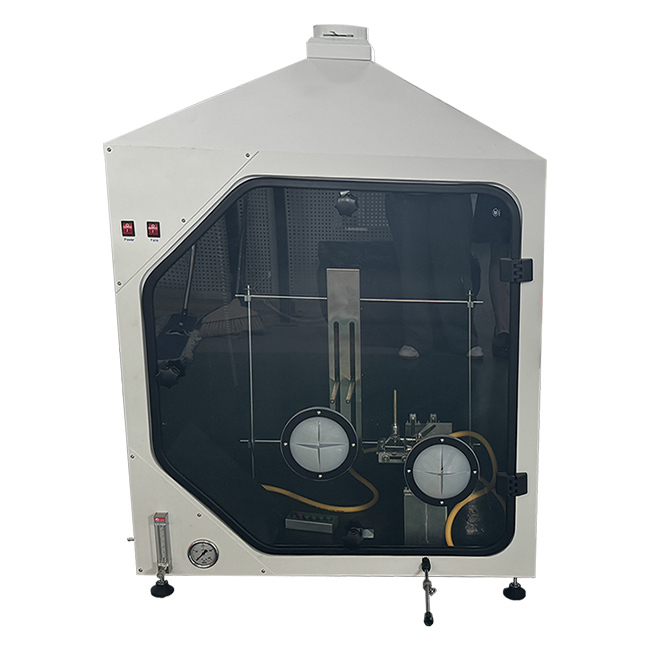

UL94 Horizontal Vertical Burning Tester for Plastics Foam

Brand Name:	Gold
Model Number:	GD-UL94
MOQ:	1
Price:	Negotiation
Delivery Time:	payment after 30 days
Payment Terms:	D/A,L/C,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Name:

UL94 Horizontal And Vertical Burning Tester

Standard:

UL94 ,IEC60695

Working Gas:

Methane Or Propane

The Burner Angle:

0, 20, Or 45 Degrees

Ambient Temperature:

10°C To 35°C

Packing Weight:

245 Kg

Packaging Details:

plywood box

Supply Ability:

1 pcs per 30 days

Highlight:

UL94 flammability tester for plastics

horizontal vertical burning tester

foam flammability test equipment

Product Description

UL94 Horizontal and Vertical Burning Intelligent Flammability Tester

Product Specifications

Attribute	Value
Name	UL94 Horizontal and Vertical Burning Tester
Standard	UL94, IEC60695
Working gas	Methane or propane
The burner angle	0, 20, or 45 degrees
Ambient Temperature	10°C to 35°C
Packing weight	245 kg

The UL94 Horizontal and Vertical Burning Tester is a precision flammability testing instrument designed for evaluating the fire resistance of materials such as plastics, textiles, and electronics, in compliance with international standards like UL94, IEC 60695, and GB/T 2408. This advanced equipment accurately measures flame spread and combustion characteristics, ensuring reliable results for quality control and product safety certification.

Compliance Standards

UL94: Standard for Safety of Flammability of Plastic Materials for Parts in Devices and Appliances, developed by Underwriters Laboratories (UL).
IEC 60695: International Electrotechnical Commission standard covering fire hazard testing for materials.
GB/T 2408: Chinese National Standard for testing the burning behavior of plastics.
ASTM D3801: Standard for measuring the vertical burning properties of solid plastics.
ASTM D635: Standard for testing the rate of burning of plastics in a horizontal position.
GB/T 5169.16: Chinese National Standard for fire hazard testing of electrotechnical products.

Applications

Plastics

Assesses burning behavior of plastic materials used in various industries, determining classifications like UL94 HB, V-0, V-1, V-2, 5VA, or 5VB based on flame spread and extinguishing time.

Representative Products: Polycarbonate sheets, polypropylene components, ABS panels, PVC insulation, nylon connectors.

Textiles

Evaluates flame resistance of woven, non-woven, or coated fabrics for various applications.

Representative Products: Polyester upholstery fabric, nylon carpeting, cotton-polyester blend curtains, aramid protective clothing, acrylic coated fabrics.

Electronics

Examines flammability of materials used in electronic components and assemblies.

Representative Products: Epoxy resin circuit boards, silicone rubber keypads, polyurethane foam insulation, thermoplastic connectors, glass-fiber reinforced composites.

Technical Parameters

Test chamber volume greater than 0.75 cubic meters with black interior
Extra-large transparent observation window for full combustion observation
User-friendly door opening for easy sample and burner access
Burner angle adjustable to 0, 20, or 45 degrees
Bunsen burner complying with ASTM D5025
Panel-mounted timer for test time recording
Rotameter for combustion gas flow rate adjustment
High-precision pressure regulating valve for gas pressure adjustment
Fan-shaped burner complying with ASTM D4986
Top exhaust system for combustion gas removal
Optional burner calibration system complying with ASTM D5207

Physical Specifications

Dimensions	1060 x 960 x 1470 mm
Weight	162 kg
Power Requirements	220 V, 5 Amps
Sample template	Foam and plastic specimens*1
Fixtures and accessories	UL94 HB supported specimen clamp (1); UL94 HB unsupported specimen clamp (1); UL94 V graded vertical specimen clamp (1 set); UL94 5V graded plate-shaped specimen clamp (1); UL94 VTM graded standard rod (1); UL94 HBF graded standard specimen clamp (1).
