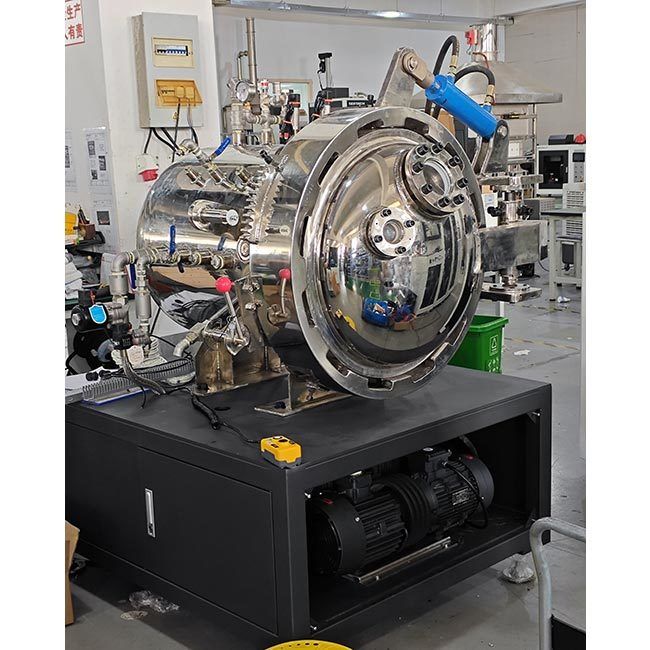

UL9540A Lithium Battery Thermal Runaway Test Chamber 220V 6kW

Brand Name:	Gold
Model Number:	GD-UL9540A
MOQ:	1
Price:	Negotiation
Delivery Time:	45 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

iso

Name:

A Thermal Runaway Lithium Battery Explosion Test Chamber

Standard:

Ul9540a

Power Supply:

220V, 6kw

The Total Amount Of Equipment::

1300kg

The Cabin Occupies The Size:

Width 1.5 Meters X Length 2.5 Meters X Height 2 Meters

Material:

SUS304 Stainless Steel.

Packaging Details:

Standard Wooden Case

Supply Ability:

1 Set per 30 days

Highlight:

Lithium Battery Explosion Test Chamber

UL9540A Explosion Test Chamber

battery explosion proof test chamber

Product Description

UL9540A Thermal Runaway Lithium Battery Explosion Test Chamber

Attribute	Value
Name	Thermal Runaway Lithium Battery Explosion Test Chamber
Standard	UL9540A
Power Supply	220V, 6kW
Total Weight	1300kg
Dimensions	1.5m (W) × 2.5m (L) × 2m (H)
Material	SUS304 Stainless Steel

Product Introduction

The Lithium Battery Explosion Chamber is designed for thermal runaway combustion and explosion testing of lithium batteries. The system provides a sealed, pressurized environment to safely contain the rapid energy release and toxic gases produced during battery failure.

Key Components

Explosion chamber with pressure-resistant design
Heating system with precise temperature control
Pressure and temperature detection systems
Air purging and nitrogen filling systems
Vacuum and gas sampling systems
Comprehensive data acquisition system
Computer-controlled operation with video monitoring

Standard Compliance

UL 9540A - Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems

Applications

Lithium-ion Battery (Li-ion Battery)

Lithium-polymer Battery (Li-Polymer Battery)

Lithium Iron Phosphate Battery (LiFePO4 Battery)

Nickel-Cobalt-Manganese Battery (NCM Battery)

Nickel-Cobalt-Aluminum Battery (NCA Battery)

Lithium-Sulfur Battery (Li-S Battery)

Solid-State Lithium Battery

Lithium Titanate Battery (LTO Battery)

Lithium Metal Battery

Technical Specifications

Tank Structure: Cylindrical design with SUS304 stainless steel construction

Pressure Capacity: Maximum 3MPa, constant 2.5MPa

Safety Features: Dual pressure relief channels with imported valves

Vacuum System: ≤1.0kPa vacuum with ≥10L/s pumping rate

Observation: High-pressure glass windows (125mm diameter, ≥3MPa resistance)

Measurement Systems

Pressure: 0-3MPa range with ±0.5% FS accuracy
Temperature: 0-1300°C range with ±1°C accuracy (16 channels)
Data Acquisition: 10Hz temperature, 100Hz pressure sampling
Control System: Computer + Labview with automatic gas replacement

Electrical Interfaces

2 sample heating channels
4 voltage acquisition channels
16 temperature acquisition channels
2 pressure signal channels (vacuum + high pressure)
2 reserved charging interfaces (300A each)

Physical Specifications

Dimensions: 1.5m (W) × 2.5m (L) × 2m (H)

Weight: 1300kg

Power Supply: 220V, 6kW
