ASTM D6413 CFR 1615/1616 Vertical Burning Tester for Textiles

Brand Name:	GOLD
Model Number:	GD-ASTM D6413
MOQ:	1 set
Price:	USD2700-3200/set
Delivery Time:	30 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product:

Textile Vertical Burning Tester

Standard:

ASTM D 6413 , CFR 1615/ CFR 1616

Inlet Gas Pressure:

17.2kpa+1.7kpa

Time:

0-99s

System:

Programmable Controller (PLC)

Burning Torch:

Inner Diameter 11mm

Application:

Textile,Children's Pajamas

Flame Height:

40 ± 2 Mm

Packaging Details:

Exported standard packaging

Supply Ability:

5sets per month

Highlight:

ASTM D6413 vertical burning tester

CFR 1616 flammability test equipment

textile vertical flame tester

Product Description

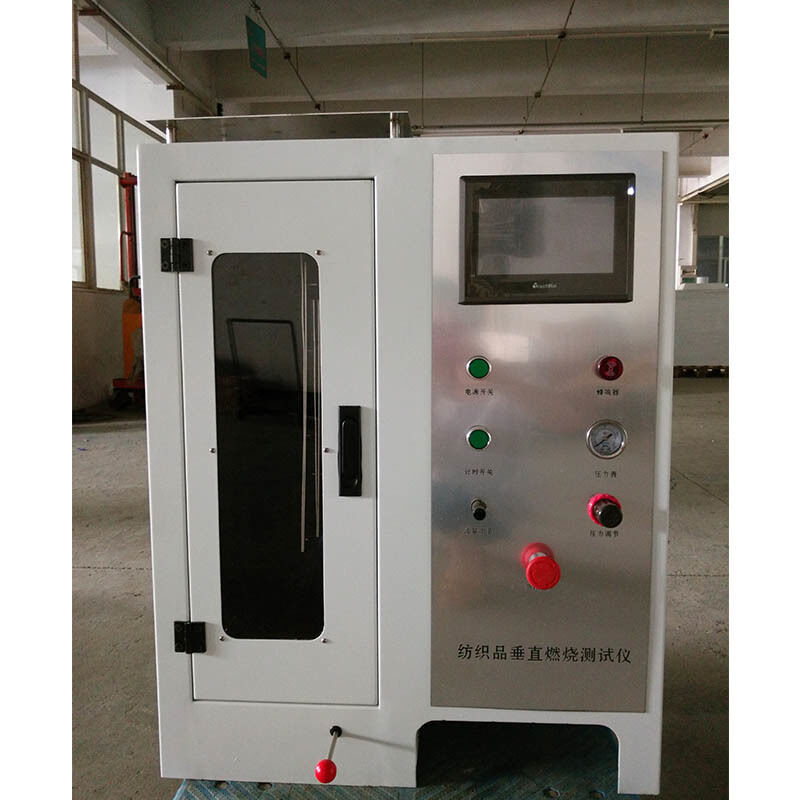

ASTM D6413 CFR 1615/1616 Vertical Burning Tester for Textiles

This textile vertical burning tester is designed and manufactured according to relevant standards such as CFR 1615/1616, CA TB117, and ASTM D6413. It is primarily used to assess the flame retardancy of children's pajamas or pajama fabrics when exposed to a small open flame.

Compliance Standards

ASTM D6413
CFR 1615/1616 Children's Pajamas
CA TB117 US Flame Retardant Standard for Upholstered Furniture Fabrics and Fillings
GB/T 5455 Vertical Burning Test

Technical Parameters

Parameter	Specification
Standard	ASTM D 6413, CFR 1615/1616
Sample size	356mm x 51mm
Igniter timing	0~99.99 seconds
Accuracy	+0.01 seconds
Power	AC220V, 50Hz, 50W

Key Features

Painted chamber with a transparent observation window
Internal dimensions: 329mm (L) x 329mm (W) x 767mm (H)
Electronic automatic ignition system
Automatic burner timing and positioning
Adjustable ignition time (0-99.99 seconds) with digital display
Adjustable flame height with optional temperature measurement
Push-pull sample holder fixing device
Sliding track mounted burner for easy operation
Multiple sample holder options available

Technical Specifications

Sample size: Textiles: 80mm * 300mm

Burner motor power: 10W

Ignition timer: 0～99.99 seconds (standard 12 seconds)

Timer accuracy: ±0.01 seconds

Flame height measurement: Scale height 40mm

Operating gas: Methane, propane, butane, or other flammable gases

Power supply: AC220V, 50Hz, 50W

Weight: Approximately 20kg
