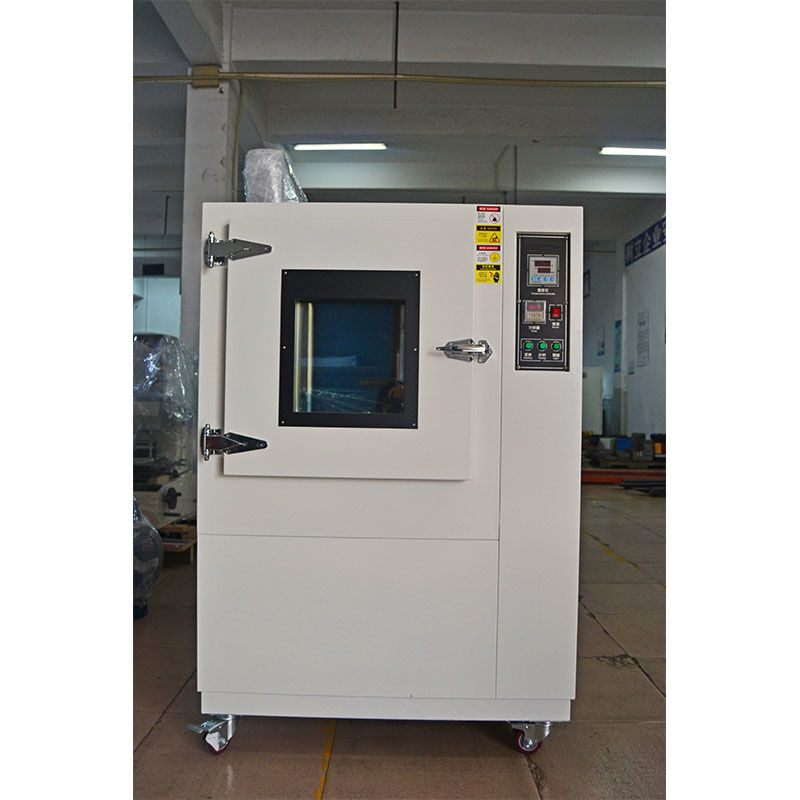

IEC 60811 Wires and Cables Natural Air Exchange Aging Test Chamber

Brand Name:	GOLD
Model Number:	GD-IEC 60811
MOQ:	1 set
Price:	USD2000-2500/set
Delivery Time:	30 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product:

Wires And Cables Natural Air Exchange Aging Test Chamber

Standard:

IEC 60811

Power Supply:

AC 220V 50/60HZ

Size:

950×750×1400mm

Materal:

SUS#304 Stainless Steel

Temperature Rang:

RT ~ 300℃

Ventilation Volume:

8～20

Temperature Uniformity::

±2℃

Packaging Details:

Exported standard packaging

Supply Ability:

5 set/per months

Highlight:

IEC 60811 cable aging test chamber

natural air exchange test chamber

wires and cables environmental testing equipment

Product Description

IEC 60811 Wires and Cables Natural Air Exchange Aging Test Chamber

Product Overview

The IEC 60811 Natural Air Exchange Aging Test Chamber is designed for aging tests of polymer materials (plastic insulators or coatings for wires and cables) and heat resistance tests of electrical insulation materials and components. This high-precision equipment also serves as a constant temperature drying oven for drying, baking, and heat treatment applications. Ideal for industrial enterprises, research institutions, universities, and laboratory environments.

Note: Not suitable for flammable, explosive, or volatile materials that produce combustible substances.

Compliance Standards

• IEC 60811-1-2
• IEC 60811-401
• VDE 0472
• GB/T 2951-2008

Technical Specifications

External Dimensions	Approximately 950mm × 750mm × 1400mm
Power Supply	AC220V, 50/60HZ, 3KW

Performance Features

Temperature Range: Room temperature (approx. 25℃) to 300℃
Temperature Fluctuation: ≤±0.5℃
Temperature Deviation: ≤±2℃
Heating Time: From room temperature to 300℃ in approximately 50 minutes
Air Exchange Rate: 8 to 20 times per hour
Inner Chamber Dimensions: 450mm × 450mm × 500mm
Inner Chamber Material: SUS#304 stainless steel
Outer Chamber: Anti-static powder coating (white)
Insulation Material: 100mm thick fiberglass wool on five sides, 60mm thick at bottom
