ISO 6940 ISO 6941 Textile Fabric Multifunctional Vertical Burning Tester

Brand Name:	GOLD
Model Number:	GD-ISO 6941
MOQ:	1 set
Price:	USD3000-3250/set
Delivery Time:	30 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product:

Multi-purpose Textile Flammability Tester

Standard:

ISO 6940, 6941, EN ISO 15025, BS 5438

Test Sample:

560mm*170mm

Flame Level:

0~60mm Adjustable

Burner Angle:

0°/22.5°/90°adjustable

Firing Time:

5 S

Material:

SUS 304 Stainless Steel

Application:

Textile

Packaging Details:

Exported standard packaging

Supply Ability:

5sets per month

Highlight:

ISO 6940 textile fabric flammability tester

vertical burning tester for fabrics

multifunctional fabric flammability test equipment

Product Description

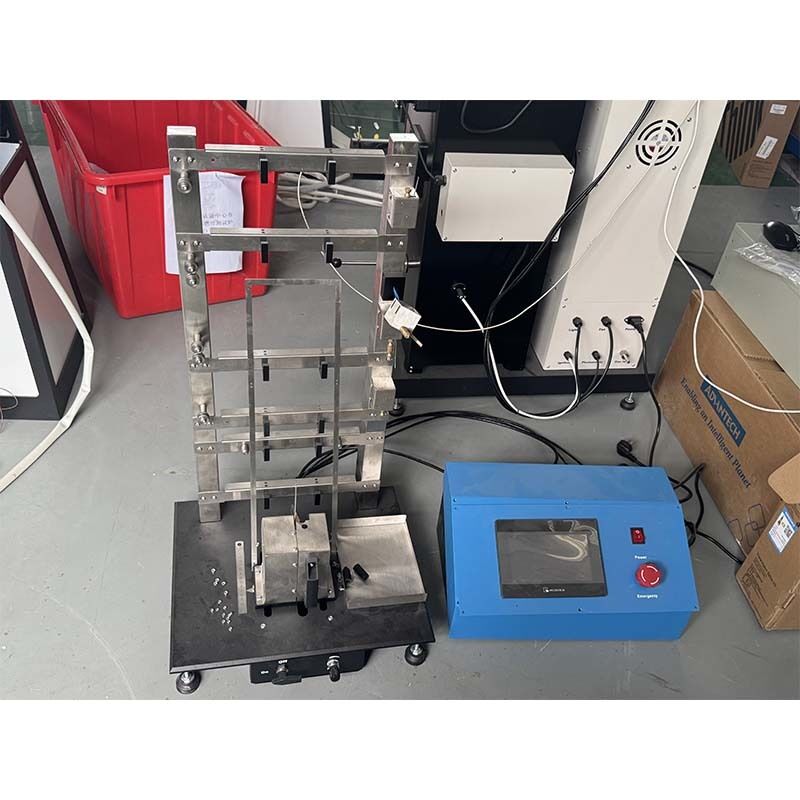

ISO 6940 ISO 6941 Textile Fabric Multifunctional Vertical Burning Tester

The multi-functional combustion tester is a precision testing device specifically designed to evaluate the flame-retardant properties of various textiles and materials. By simulating vertical ignition conditions, this instrument accurately measures the combustion behavior and flammability characteristics of the edges and bottom edges of textiles and their components when in contact with a flame source, providing crucial data support for product quality and safety compliance.

Its applications are wide-ranging, covering not only everyday clothing and home textiles but also multiple professional fields: including but not limited to flammability assessment of sleepwear fabrics and their composites, flame-retardant performance testing of decorative fabrics such as curtains and drapes, and fire resistance verification of various protective clothing and workwear fabrics. The instrument is rigorously designed and standardized in operation, comprehensively testing core parameters such as ignition ease, flame spread rate, afterflame time, and char length, thereby systematically assessing its fire risk in practical use.

Regarding standard compliance, this equipment strictly adheres to multiple authoritative testing standards both domestically and internationally, including but not limited to international and regional standards such as ISO, ASTM, GB, EN, BS, and JIS, making it suitable for the quality inspection and R&D needs of multiple industries such as textiles, clothing, fire protection, aviation, transportation, and occupational safety products. Through repeatable and high-precision testing, it provides users with reliable evaluation criteria for flame retardant performance, helps enterprises improve product safety levels, meet market access requirements, and provides an effective tool for fire protection scientific research on related materials.

Compliance Standards

ISO 6940, ISO 6941, ISO 10047, BS5438, BS5722, BS EN 1103, BS EN 13772, ISO 15025, AS 2755.1.2.3, GBT 8745, GBT 8746, GBT 5456

Technical Parameters

Parameter	Specification
Name	Textile vertical burning tester
Standard	ISO 6940, ISO 6941
Ignition time range	0-99.99S
Burner	Throat diameter Φ0.19+0.02mm, length 75mm, mixed air outlet Φ1.7, air inlet 4XΦ4 mm according to ISO6941
Accuracy	0.1s
Timing range	0-999.9s
Fire mouth angle	0°/30°/90° (Adjustable)
Flame measurement height	20mm/40mm
Dimension inside U clamp	80mm x 600mm
Power	220/110 V 50/60 Hz

Key Features

Floor-standing machine base for convenient operator use
Large combustion frame accommodates various test needle frames for different standards
Equipped with 7 types of test needle frames and 1 set of stainless steel sample clamps
Roller screw adjusts burner forward/backward with knob height adjustment
One-button electric spark ignition system
Programmable butane and propane combustion gas switching
Flame angle indicator plate displays operating angle
Built-in flame height gauge for vertical flame detection
Stepper motor drive for precise burner movement
High precision ignition device with 0.18-degree angle accuracy
Outdoor operation mode for test personnel safety
Support arm system with rotatable control box for easy operation
Touch screen operation interface
Human-machine interface with PLC control and pre-programmed national test standards
