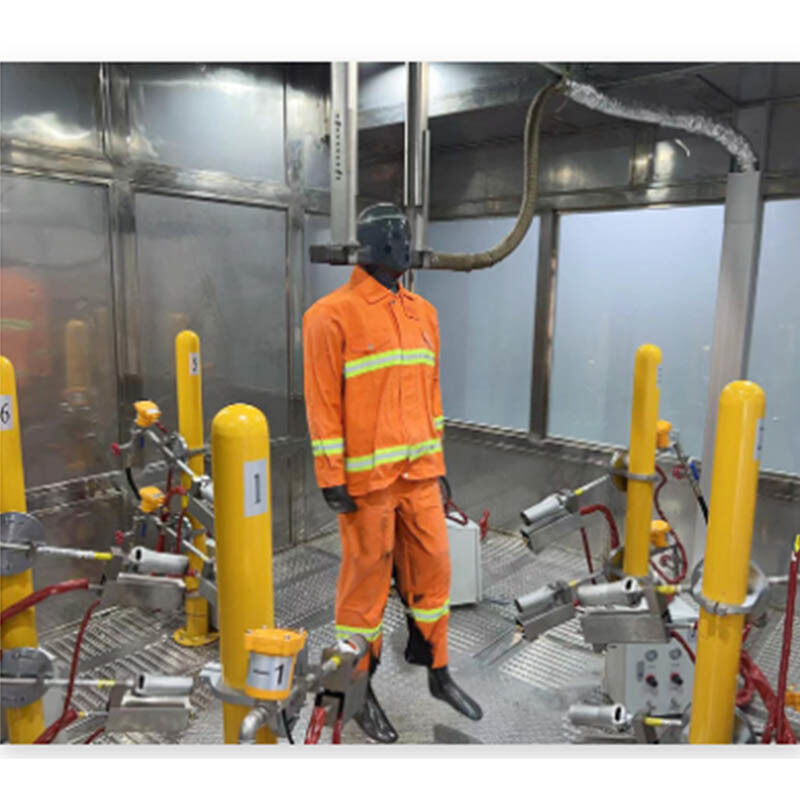

ISO 13506 ASTM F1930 Protective Suit Dummy Combustion Testing Device

Brand Name:	GOLD
Model Number:	GD-ISO 13506
MOQ:	1 set
Price:	USD9500-10000/set
Delivery Time:	30 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product:

Protective Clothing Burning Dummy Test Device

Standard:

ISO 13506 , ASTM F1930

Combustion Chamber Volume:

Length 4m X Width 3.5m Height 3m

Number Of Flamethrowers:

12 PCS

Burning Dummy Height:

175 ± 5 Cm

Sampling Frequency:

95Hz/channel

Sampling Accuracy:

±0.29℃

Resolution:

0.01℃

Packaging Details:

Exported standard packaging

Supply Ability:

5sets per month

Highlight:

ISO 13506 protective suit dummy

ASTM F1930 combustion testing device

flammability test equipment with warranty

Product Description

ISO 13506 ASTM F1930 Protective Suit Dummy Combustion Testing Device

The flame retardant performance test system for protective clothing is developed based on standards GBT23467-2009, ISO13506 and ASTM F1930. This advanced testing device detects temperature field changes in controlled flame exposure environments using sensors installed on the dummy surface to calculate burn areas and predict human tissue damage.

Compliance Standards

ISO 13506-1: Test Method for Complete Garments - Measurement of Transferred Energy Using Instrumented Manikin
ASTM F1930: Standard Test Method for Evaluation of Flame-Resistant Clothing for Protection Against Fire Simulations Using an Instrumented Manikin
GB8965.1: Protective Clothing - Flame Retardant Clothing
GB/T 23467: Test Method for Evaluating Flame Retardant Properties of Clothing under Flashover Conditions Using a Dummy

Technical Specifications

Warranty	1 Year
Customized Support	ODM, OBM
Place of Origin	China
Brand Name	Gold
Model Number	GD-ISO 13506
Power	Electronic
Fuel	90% pure liquid propane
Buffer Tank Pressure	0.3 ~ 0.4MPa
Number of Flamethrowers	12 PCS

Key Features

Original imported dummy model made of fiberglass and flame-retardant resin composite
124 evenly divided surface areas, each equipped with embedded high-temperature sensors
Ceiling suspension system with feet positioned 15-20cm above ground
High-temperature resistant metal tube neck support with 10m thermocouple cable
Movable joints (shoulders, elbows, knees, ankles) for simulating various postures
High-temperature resistance capable of withstanding 84 kW/m² flame for 8+ seconds
Highly sensitive thermal sensors with oxygen-free superconducting copper contact surface
Thermocouple-type heat sensors with 0.1 second response time
Includes 150 sensors for maintenance and replacement
Dedicated sensor calibration tools provided
12-burner array with cast iron heads and flame protection
Electric spark ignition system with pilot flames
Four propane cylinder gas supply system with constant-temperature heating
Explosion-proof exhaust fan for continuous ventilation
Automatic propane leak detection and gas supply cutoff
4m x 5m x 5m combustion chamber with heat-resistant construction
Large heat-resistant tempered glass observation window
Rapid smoke exhaust capability (15-second clearance)
Combustion alarm system with audible/visual alerts
Indoor temperature control system
Data acquisition system collecting from 124 sensors at 10+ times per second
