AS 1530.3 Building Materials Radiant Heat Flame Propagation Heat Release Test Apparatus

Brand Name:	Gold
Model Number:	GD-AS 1530.3
MOQ:	1
Price:	negotiation
Delivery Time:	60 work days
Payment Terms:	D/A,L/C,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Name:

AS 1530.3 Building Materials Radiant Heat Flame Propagation Heat Release Test Apparatus

Standard:

AS1530.3

Test Fixture Dimensions:

3000(W)×1000(D)×5450(H)mm

Control Cabinet Dimensions:

600(W)×800(D)×1800(H)mm

Weight:

200kg

Exhaust:

30~85㎥/min

Packaging Details:

plywood box

Supply Ability:

1 per 60 works days

Highlight:

AS 1530.3 radiant heat test apparatus

building materials flame propagation tester

heat release rate test equipment

Product Description

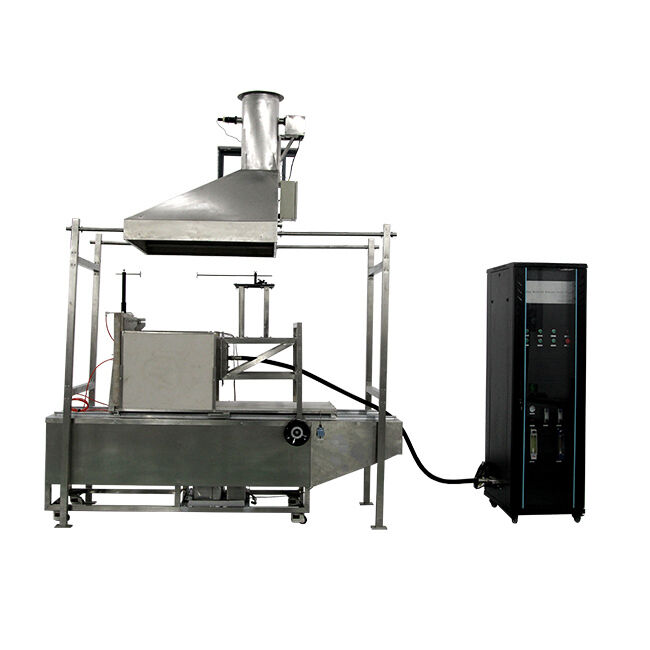

AS 1530.3 Building Materials Radiant Heat Flame Propagation Heat Release Test Apparatus

The AS 1530.3 Building Thermal Radiation Burning Test Chamber is a professional fire testing device designed to evaluate the fire behavior characteristics of building materials under radiant heat exposure. This equipment measures critical performance indicators including ignition time, flame propagation speed, heat release rate, and smoke production. Using radiant heat panels to simulate real fire scenarios, it helps manufacturers and regulatory agencies determine whether materials comply with Australian and New Zealand building codes for fire resistance.

Testing Standard

AS 1530.3: Methods for fire tests on building materials, components and structures - Part 3: Simultaneous determination of ignitability, flame propagation, heat release and smoke release

Application Scope

This tester assesses fire hazard characteristics including flammability, flame propagation, heat release, and smoke release for various building products exposed to radiant heat. Suitable for solid, coated, or layered materials (excluding those that excessively melt or shrink away from flames).

Common Applications:

Wall and Ceiling Linings: Drywall, fiber cement boards, acoustic panels, decorative wall coverings
Flooring Materials: Carpet tiles, vinyl flooring, laminate flooring, wood flooring
Insulation Products: Fiberglass, rock wool, foam insulation boards
Coatings and Finishes: Paints, varnishes, fire-retardant coatings, sealants
Textiles and Fabrics: Curtain fabrics, upholstery fabrics, wall hangings
Composite Materials: Sandwich panels, laminated plywood, MDF, particleboard
Roofing and Exterior Products: Roofing membranes, metal roofing panels
Other Components: Door finishes, window frame coatings, electrical conduit coverings

Testing Requirements: 100mm x 150mm samples (typically 6 samples) mounted vertically. Materials are classified according to flammability (0-20) and flame spread (0-10) indices to comply with building codes.

Technical Parameters

Construction & Materials:

All structural components: Stainless steel for corrosion resistance
Test flue lining: Calcium silicate plate, 13±1mm thick, 650kg/m³ density
Test flue position: 900mm above radiation plate center line

Heat Radiation System:

Radiant heat source: Inflatable plate perpendicular to sample
Heat radiation range: 10.9 kW/m² to 1.1 kW/m²
Maximum temperature: 900℃ with safety shut-off function
Calorimeter: Imported from USA, range 20KW/㎡
Ignition tube: 6mm diameter, positioned 15mm in front of sample
Sample rack frame: 100x50mm wooden strips
Propane flow control: 0.026±0.002L/s via imported flow control valve
Sample movement: Gear-driven with large handwheel for easy operation

Exhaust System:

Exhaust speed: 2.5±0.2 m/s
Exhaust capacity: 85m³/min

Measurement & Control Systems:

Heat flux measurement: 0-15kw/㎡ with ±2% accuracy
Flame length adjustment: 12±1mm
Critical temperature adjustment: Up to 900℃
Smoke density system included
Data collection and analysis software

Control System Features

Standard Control Cabinet with Computer + LabVIEW Intelligent Control System:

Parameter setting and display with test status monitoring
Data acquisition, storage, and real-time temperature curves
Historical data query and USB data export
Independent machine operation for complete testing
Audible alarms and fault display functions
USB/RS232 connectivity for computer control
Test report printing capability

Programmable Logic Controller (PLC) System:

Automatic ignition with failure detection and protection
Automatic propane gas flow control and display
PLC + frequency converter for exhaust gas flow control

Technical Specifications

Power Supply Voltage	AC380V±10%, 50Hz
Maximum Power Consumption	5KW
Timing Accuracy	<1s/h
Heat Flux Meter Measurement Range	0-15 Kw/m²
Heat Flux Meter Accuracy	±0.2 Kw/m²
Heat Flux Meter Precision	<±2%
Exhaust Velocity	2.5±0.2 m/s
Exhaust Capacity	39-85 m³/min
