VW-1 Flame Test Vertical Flame And FT1 Test Equipment UL 1581

Brand Name:	GOLD
Model Number:	GD-UL2556Y
MOQ:	1 set
Price:	USD 6000-9000
Delivery Time:	25-45 working days
Payment Terms:	L/C,D/A,D/P,Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product:

VW-1 Flame Test Vertical Flame And FT1 Test Equipment UL 1581

Standard:

UL 1581, UL 2556

Application:

Cable Fire Resistance Test

Control System:

7-inch Color Touchscreen + PLC

Time Setting Range:

0～999 Seconds (combustion/extinguishing/afterflame)

Combustion Burner:

500W, 20° Angle, Conforms To ASTM D 5025-99

Packaging Details:

Plywood case

Supply Ability:

10 sets per month

Highlight:

VW-1 flame test equipment

UL 1581 vertical flame tester

FT1 smoke density tester

Product Description

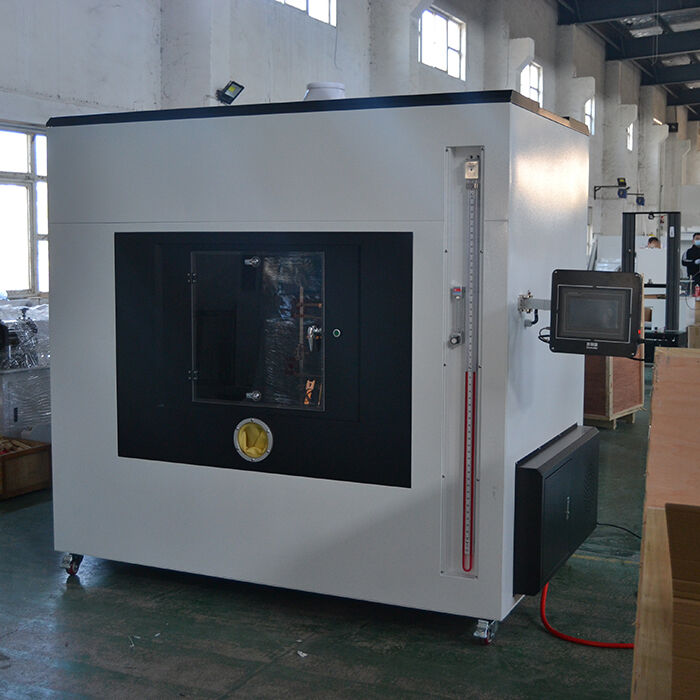

VW-1 Flame Test Vertical Flame And FT1 Test Equipment UL 1581

The VW-1 Cable Horizontal and Vertical Burning Tester is a high-precision burning test device designed in strict accordance with the UL 2556-2013 standard. This equipment is specifically designed for VW-1 and FT-2 vertical burning tests in the wire and cable industry. It features automated control, high repeatability, and ease of operation, and is widely used for flame retardant performance testing in the wire and cable, electronic wire, and insulation materials industries.

Core Advantages

Standard Compliance: Fully compliant with UL 2556-2013 and VW-1 flammability test standards
Automated Operation: Supports freely adjustable combustion, afterflame, and re-ignition times and repetition counts, achieving fully automated testing
High-Precision Control: Employs PLC and 7-inch color touchscreen with time setting accuracy from 0 to 999 seconds
Imported Core Components: Equipped with high-precision sensors including Hamburger burner, Dwyer pressure gauge, and K-type thermocouples
Safety and Environmental Protection: Test chamber features smoke extraction system and sealed structure for safe experimental environment
Wide Applicability: Suitable for vertical flammability testing of various wires, cables, and insulating materials

Technical Specifications

Test Chamber: Constructed from steel plates with anti-static powder coating for attractive appearance and rust resistance. Features smoke exhaust system on top and two air inlets with pneumatic sealing devices on lower sides.

Observation & Lighting: Front observation window for easy test result monitoring. Internal lighting uses fog-proof and smoke-proof circular lamp.

Control System: 7″ color touchscreen and PLC control with time settings adjustable from 0~999S for burning, ignition, and afterburning.

Temperature Measurement: Thermal sensor uses high-conductivity electrolytic copper with imported φ0.5K type stainless steel thermocouple and portable intelligent temperature controller supporting readings above 1000℃.

Combustion System: Imported American Hamburger torch meeting ASTM D 5025-99 standards with 500W power and 20° angle.

Instrumentation: U-tube manometer (Dwyer, USA), high-precision flow meter (0.1～1.0L/min, Class 2 accuracy), and mini printer.

Detailed Specifications

Item	Parameter Description
Test Standard	UL 2556-2013, VW-1, FT-2
Test Chamber Volume	4.32 cubic meters (sealed structure)
Control System	7-inch color touchscreen + PLC
Time Setting Range	0～999 seconds (combustion/extinguishing/afterflame)
Temperature Measurement	K-type thermocouple supports readings above 1000℃
Combustion Burner	Imported from Hamburg, USA, 500W, 20° angle, conforms to ASTM D 5025-99
Pressure Gauge	Dwyer U-tube pressure gauge (USA)
Flow Meter	High-precision flow meter, 0.1～1.0L/Min, Class 2 accuracy
Test Chamber Dimensions	2m (W) * 1.2m (D) * 1.8m (H)
Overall Dimensions	2020mm (W) * 1250mm (D) * 2365mm (H)
Power Supply Requirements	AC220V 50/60Hz 3A
Gas Supply Requirements	Methane, air (to be provided by the user)
