EN 54-10 infrared and ultraviolet flame detectors Inspection apparatus

Brand Name:	Gold
Model Number:	GD-EN54-10
MOQ:	1
Price:	negotiation
Delivery Time:	60 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Name:

Infrared And Ultraviolet Flame Detectors Inspection Apparatus

Standard:

EN 54-10

Test Area:

Infrared And Ultraviolet Flame Detectors （IR,UR,IR2 Flame Detector）

Laboratory Temperature:

15℃～35℃ (around 25℃ Is Ideal)

Laboratory Space:

Length 3.8 Meters, Width 3.0 Meters (including Operating Space), Height 3.0 Meters Or More

Power Supply:

AC220V 50HZ (voltage Fluctuation ≦±10%)

Packaging Details:

plywood box

Supply Ability:

1 per 60 works days

Highlight:

EN 54-10 flame detector inspection apparatus

infrared ultraviolet flame detector tester

flame detector inspection equipment with warranty

Product Description

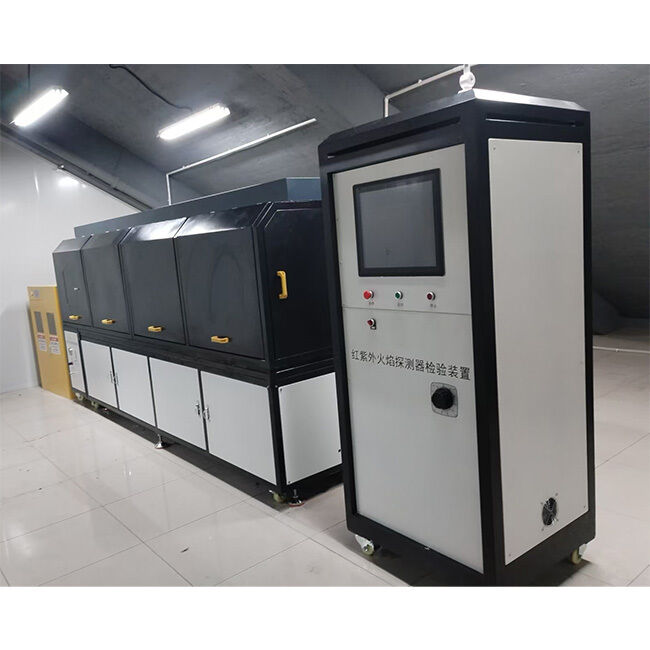

EN 54-10 Infrared and Ultraviolet Flame Detectors Inspection Apparatus

This professional EN 54-10 UV/IR Flame Detector Tester is a functional testing device designed for field and laboratory testing of point flame detectors. It accurately simulates flame radiation signals and supports comprehensive testing including response threshold, consistency, repeatability, orientation, power-on, power supply parameter fluctuation, and ambient light interference testing.

Product Introduction

This portable, rechargeable battery-powered flame detector inspection apparatus employs high-precision radiation simulation sources. It is easy to operate, safe, and reliable, making it suitable for regular maintenance, installation, commissioning, performance verification, and compliance certification testing in hazardous industrial areas, petrochemical plants, warehouses, airports, tunnels, and other locations.

Compliance Standards

GB 12791-2006 & GB 15631-2008 Point-type infrared and ultraviolet flame detectors
EN 54-10:2002 + A1:2005 Fire Detection and Fire Alarm Systems
ISO 7240-10:2012 Fire detection and alarm systems
FM 3260 Approval Standard for Flame Radiation Detectors

Testing Capabilities

Response threshold test
Conformity test
Repeatability test
Orientation test
Power-on test
Power supply parameter fluctuation test
Ambient light interference test

Compatible Detector Types

Ultraviolet (UV) Flame Detector (185-260nm band)
Single-band Infrared (IR) Flame Detector
Dual-band Infrared (IR/IR) Flame Detector
Triple-band Infrared (IR3) Flame Detector
UV/IR Combined Flame Detector
UV/IR2 Combined Flame Detector
Multispectral Infrared Flame Detector

Technical Specifications

Optical System

• Dual-electric displacement track, effective length: 2.5m

• Movement measurement accuracy: ±4mm

• Straightness: <0.04mm

Light Source

• Methane combustion flame as red and ultraviolet light source

• Fuel gas: Methane (purity ≥99.9%)

• Radiant energy variation: <±5%

Sample Support System

• Height adjustment: 10-200 mm

• Angle adjustment: 0°, 15°, 30°, 45°, 60° (±5° accuracy)

• Movement speed: 50mm/s

• Distance range: 0-2500mm from flame

Control & Modulation

• Touch screen + PLC control system

• Chopper frequency: 0-14Hz continuously adjustable

• Remote-controlled high-voltage electronic ignition

Power Requirements

• Power supply: AC220V, 50Hz, 600W

• Voltage adjustment range: 0-50V for parameter fluctuation testing

Main Components

Component No.	Description
1	Optical Track
2	Red/Ultraviolet Light Source
3	Neutral Density Filter
4	Modulator
5	Sample Slide Stage Support
6	Power Parameter Fluctuation Test
7	Control Box
8	Operation Display Touchscreen
9	Ambient Light Interference Device

Laboratory Requirements

Environmental Conditions

• Temperature: 15℃-35℃ (25℃ ideal)

• Relative Humidity: 25%-75% RH

• Atmospheric Pressure: 86-106 kPa

• No direct sunlight, open flames, or strong airflow

Space & Facility Requirements

• Minimum usable space: 3.8m × 3.0m × 3.0m

• Equipment dimensions: 2780mm × 530mm × 1370mm

• Minimum wall clearance: 600mm

• Well-ventilated laboratory environment

• Methane gas supply (99% purity)
