EN 71-2 ISO 8124-2 Toys Comprehensive Combustion Flammability Tester

Brand Name:	GOLD
Model Number:	GD-EN 71-2
MOQ:	1set
Price:	USD 2000-2355/set
Delivery Time:	30days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Name:

Toys Flammability Tester

Standard:

DIN EN 71-2,ISO 8124-2

Type:

Material Testing Machine

Load Way:

Electronic Load

Display:

Touch Screen

Control:

PLC

Power Source:

AC220V

Flame Height:

0~60mm Adjustable

Packaging Details:

Standard Wooden Case

Supply Ability:

5 Set per 30 days

Product Description

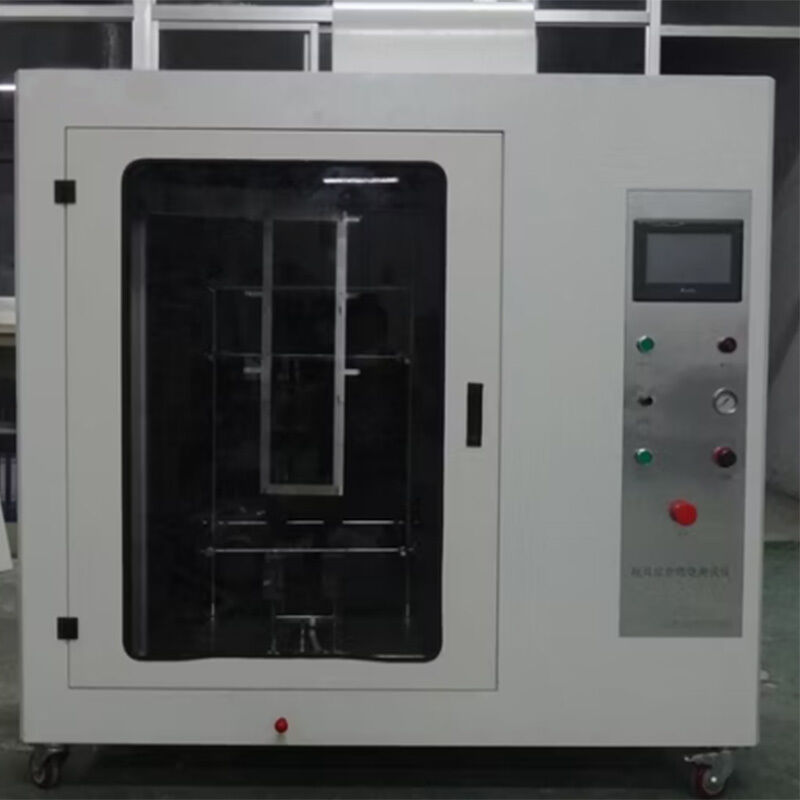

EN 71-2 ISO8124-2 Toys Comprehensive Combustion Flammability Tester

Product Introduction

This comprehensive toy flammability tester is designed and developed according to DIN71-2 standard and equipped with an ISO6941 torch. It is used to test children's clothing, including shawls, flowing garments, and similar items; toys that children can hug and stuffed toys; toys that children can enter, such as play tents and playrooms; and masks and wigs. The device features a touchscreen intelligent control system; users can freely select relevant standard test programs through the start interface, making the testing process more convenient and simple.

Compliance Standards

DIN EN 71-2
GB6675.3
ISO8124-2

Technical Specifications

Parameter	Specification
Voltage	220V, 50/60Hz
Sample clamp size	150mm x 560mm
Product manual	Provided
Certificate of conformity	Provided

Key Features

All sample holders are made of stainless steel; aesthetically pleasing and corrosion-resistant.
Imported standard burner; flame height adjustable from 0 to 60 mm; nozzle opening 0.19 mm.
Automatic time recording and storage; timer accuracy 0.1 second.
Electronic automatic ignition and automatic extinguishing.
Ignition time adjustable from 0 to 99.99 seconds; afterburning time and flame retardant time are automatically recorded and displayed digitally.
PLC Combined with a touchscreen control system, the test is more intelligent, with test data automatically recorded and stored.
Imported pressure gauges and regulating valves ensure more stable gas pressure.
Imported needle valves precisely control flame height, ensuring a more stable flame.
Highly intelligent, simple, and easy to operate.
Stainless steel specimen holders for various experiments are available, along with a flame height gauge.
The burner angle is vertical and adjustable through 45°.
The programmable controller features a 7" touchscreen for control, monitoring, calculation, and data display.
No need for a handheld stopwatch or manual timing; the test time is automatically recorded and a report is generated.
The test time and ignition time can be set on the touchscreen, meeting the requirements of various test standards.
