BS EN 13823 SBI Building Materials Single Burning Item Combustion Equipment

BS EN 13823 SBI Building Materials Single Burning Item Combustion Equipment

Brand Name:	GOLD
Model Number:	GD-BS EN 13823
MOQ:	1set
Price:	USD8000-9500/set
Delivery Time:	30days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Name:

Single Burning Items (SBI)

Standard:

BS EN 13823

Combustion Chamber Dimensions:

3m*3m*2.4m

Measurement Range:

0-25%

Linearity Deviation:

<1%

Power Voltage:

220 V,60 Hz ,20 A

Exhaust:

0.55m3/s ~ 0.65 M3/s

Sandbox Burner (mm):

250 (w) * 250 (d) * 80 (h)

Packaging Details:

Standard Wooden Case

Supply Ability:

1set/Month

Product Description

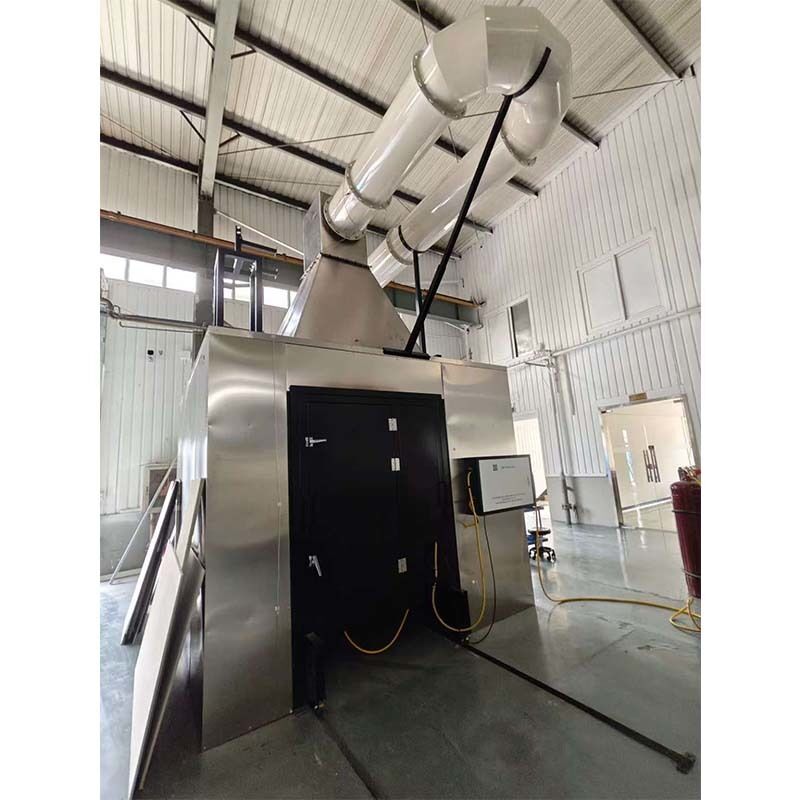

BS EN 13823 SBI Building Materials Single Burning Item Combustion Equipment

The Single Burning Item Test Equipment for Building Materials is a testing device independently developed and manufactured by our company in accordance with EN 13823. This apparatus determines the fire reactivity of building materials or articles (excluding flooring materials) in a single-body burning test (SBI).

The system employs a computer interface for direct control of testing equipment, significantly saving manpower and resources. The test program features an intuitive interface written in Visual Basic 6.0, with data output in Excel format for easy processing. Test data curves can be saved and printed in real time, and complete test records are securely stored.

Compliance Standards

EN 13823 "Fire reaction of building products - Test methods for individual combustion of building products without underlayment"
GB/T 20284-2006 "Individual combustion tests of building materials or products"
GB 8624-2012 "Classification of flammability of building materials and products"

Technical Specifications

Parameter	Specification
Name	Single Burning Items
Standard	BS EN 13823
Combustion Chamber Dimensions	3000mm × 3000mm × 2500mm
Exhaust Duct Dimensions	5200mm × 3000mm × 1800mm
Control Box Dimensions	78mm × 55mm × 1800mm
Exhaust Velocity	0.50m³/s to 0.65m³/s
Temperature Measurement	K-type thermocouple (±0.5°C accuracy)
Oxygen Analysis	0-25% range, <12s response
CO₂ Measurement	0-10% range, >1% linearity
Power Supply	AC 220V 50Hz, 15kW max

Key Features

High-precision pressure sensor for flue gas duct with ±2Pa accuracy
Test duration: 1560 seconds
Oxygen analysis (paramagnetic): 0-25% range with <12s response time
Carbon dioxide measurement (IR type): 0-10% range with >1% linearity
Data acquisition output resolution: ≥100x10
Colorimetric standard accuracy: ±5%
Output linearity (transmittance): <3%
Control cabinet power supply: AC220V 50HZ
Equipment power: 15kW
Safety alarm activates when flue gas duct temperature exceeds 400℃
