FAA Multifunctional Combustion Test Chamber

Brand Name:	GOLD
Model Number:	GD-CCAR25-A
MOQ:	1 set
Price:	USD 3000 - 8000
Delivery Time:	25 days
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product:

FAA Multifunctional Combustion Test Chamber

Test Type:

FI - Horizontal, Vertical, 45°, 60° Combustion Test

Application:

Aviation Materials Combustion Test

Power:

220V, 50HZ, 0.5KW

Exhaust Outlet:

φ150mm

Gas Displacement:

500 Cubic Meters/hour

Packaging Details:

Exported standard package

Supply Ability:

10 sets per month

Highlight:

FAA combustion test chamber with warranty

multifunctional smoke density tester

combustion test chamber for FAA compliance

Product Description

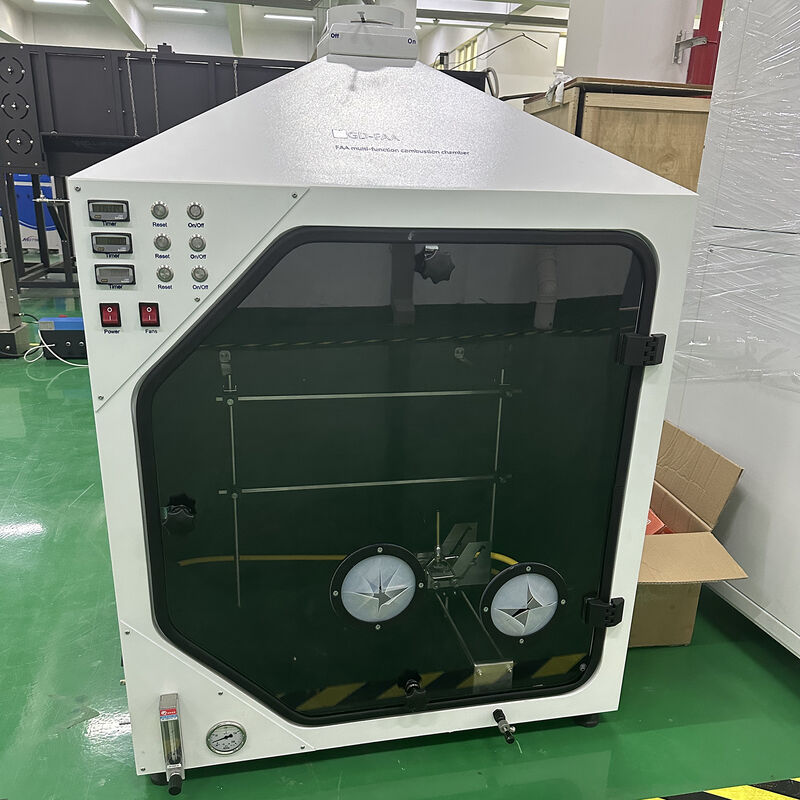

FAA Multifunctional Combustion Test Chamber

FAA Multifunctional Combustion Test Chamber (FI - Horizontal, Vertical, 45°, 60°)

Product Summary

The FAA multifunctional combustion test chamber simultaneously meets FAA combustion testing requirements for insulated wires at vertical, horizontal, 45-degree, and 60-degree angles. This versatile chamber enables quick switching between different test configurations for user convenience. In addition to FAA combustion test standards, the chamber also complies with domestic civil aircraft combustion test standards including HB5469 and HB5470.

Working Principle

An automatic ignition device ignites the Bunsen burner within the combustion chamber. After a preset ignition period, the flame impacts the sample secured in the sample holder, enabling determination of material combustion characteristics and damage distance measurements post-combustion.

Main Components

Complete system includes combustion test chamber main unit, gas control device, electrical control device, burner, horizontal combustion sample kit, vertical combustion sample kit, 45-degree combustion test kit, 60-degree combustion test kit, test weights, and temperature calibration unit.

Performance Features

Stainless steel inner liner with electrostatic powder coating on outer wall
Large heat-resistant glass observation window for clear experimental monitoring
Integrated gas pressure and flow regulation devices
Bunsen burner mounted on sliding rail for easy operation
Electric spark ignition system for user-friendly operation
Stainless steel sample holder with counterweight for 60-degree combustion tests
Precision flame height measuring tool for accurate flame calibration
Sample positioning tool ensures correct distance between sample and burner

Compliance Standards

International Standards: AITM 2.0002A, AITM 2.0002B, AITM 2.0004, AITM 2.0005
BSS Standards: BSS 7230: F1, BSS 7230: F2, BSS 7230: F3, BSS 7230: F4, BSS 7230: F5, BSS 7230: F6
FAR PART 25 Appendix F: Part I (a) (1) (i), Part I (a) (1) (ii), Part I (a) (1) (iv), Part I (a) (1) (v), Part I (a) (2) (iii), Part I (a) (3)
