EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A

Brand Name:	GOLD
Model Number:	GD-BS EN 13823
MOQ:	1set
Price:	USD8000-9500/set
Delivery Time:	30days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Name:

Gas And Vapor Maximum Explosion Pressure Chamber

Standard:

EN 15967,UL9540A

Type:

Finished Batteries Tester

Application:

Lithium-Ion Battery

Explosion Pressure Sensor:

2.0MPa, Linearity ± 1.0% Fs

Working Environment:

(-5 ~ 45) ℃, <95% Rh

Test Object:

Gas Or Gasification Of Solids, Liquids

Computer Control System:

Automatic

Packaging Details:

Standard Wooden Case

Supply Ability:

1set/Month

Product Description

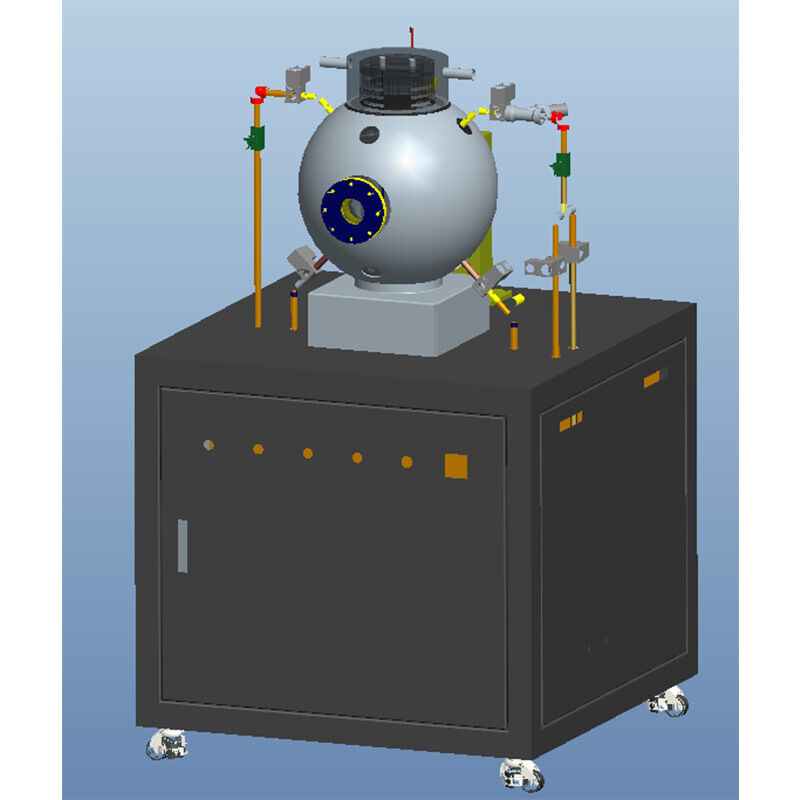

EN 15967 Gas and Vapor Maximum Explosion Pressure Chamber With UL9540A

The Max Explosion Pressure Chamber is used to determine the maximum explosion pressure of cell vent gas by filling the same composition of synthetically replicated gas into the explosion chamber and testing. The 20L volume explosion chamber is designed in accordance with EN 15967 and UL 9540A standards, featuring low chamber volume to reduce test costs while improving test repeatability.

Test Capabilities

Test Object: Single or mixed flammable gases
Test Parameters: Measurement of maximum explosion pressure, explosion index, rate of pressure rise, and explosive limit oxygen concentration

Compliance Standards

• EN 15967: Determination of maximum explosion pressure and the maximum rate of pressure rise of gases and vapours
• UL 9540A

Technical Specifications

Container Pressure Resistance	Design pressure of 3.0 MPa at 25°C
Sphere Material	316L stainless steel
Explosion Pressure Sensor	Measurement range of 0-30 bar
Explosion Pressure Detection Channels	2 channels
Stirrer	20-800 rpm
Temperature Control	25°C ± 0.2°C
Power Supply	220V, 50Hz, 500W
Gas Requirement	Compressed air from an air compressor (oil-free and dry)

Key Features

20L stainless steel explosion chamber construction
Heater provides rapid control and stable regulation of explosion field temperature with stable warming rate of 5m
Equipped with imported high-precision pressure sensors and Dalton partial pressure method for precise gas mixture control
Fully automated control system including automatic vacuum, gas distribution, and stirring
Stainless steel container pressure: 2.0Mpa, burst valve pressure: 2.0Mpa
Explosion pressure sensor: 2.0Mpa, linearity ± 1.0% FS
Automatic computer control system outputs temperature and pressure curves while calculating gas combustion limits, maximum burst pressure, and combustion explosion index parameters
Operating environment: (-5 ~ 45)°C, <95% RH
Test compatibility: gas or gasification of solids and liquids
