NFPA 701 Curtain Fabric Film Flame Spread Combustion Tester

Brand Name:	GOLD
Model Number:	GD-NFPA 701-1
MOQ:	1 set
Price:	USD3000-3300/set
Delivery Time:	30 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product:

Curtain Combustion Tester

Standard:

Nfpa 701

Control:

Smart Control

Weight:

About 60kg

Application:

Curtain, Textile Fabric Etc.

Power Supply:

220V, 50Hz, 30W.

Combustion Chamber Dimensions:

Length 940mm X Width 505mm X Height 705mm

Meter Range:

0~1800cc/Min

Packaging Details:

Exported standard packaging

Supply Ability:

5 set/per months

Highlight:

NFPA 701 curtain fabric tester

flame spread combustion tester

NFPA 701 flame spread tester

Product Description

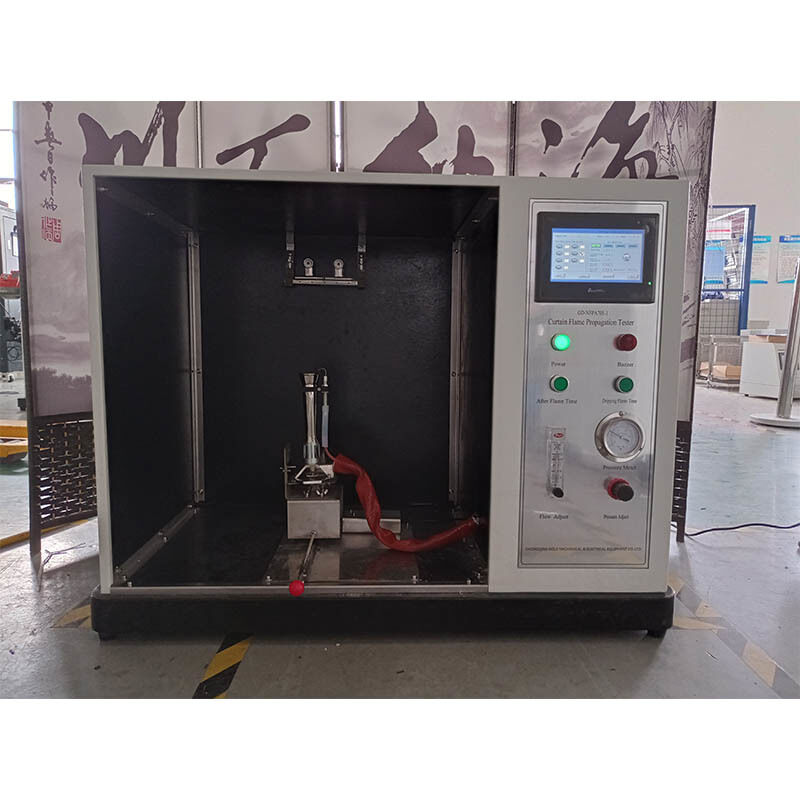

NFPA 701 Curtain Fabric Film Flame Spread Combustion Tester

This equipment is primarily developed and manufactured according to the US NFPA 701 standard and is used to test the flame propagation performance of fabric and film materials. This standard specifies flame retardancy testing methods for window covering materials such as curtains, drapes, and door curtains, as well as similar products such as awnings, tents, tarpaulins, stage curtains, architectural fabric structures, and banners. It is widely used to evaluate the combustion characteristics and safety of decorative and functional textile products in open flame environments.

Testing Standards

NFPA 701: Standard Methods of Fire Tests for Flame Propagation of Textiles and Films
Method 1: Applicable to single-layer or tightly combined multi-layer fabrics (such as curtains, draperies, tablecloths, etc.), requiring a surface area density of ≤700g/m², and testing flame propagation and afterburning time.

Technical Specifications

Warranty	1 Year
Customized support	ODM, OBM
Place of Origin	China
Brand Name	Gold
Model Number	GD-NFPA 701
Power	AC220V 10%
Combustion chamber size	940mm(L) x 505mm(W) x 705mm(H)
Weight	about 60 kg
Flow meter range	0~1800cc/min

Key Features

Painted casing with a transparent observation window
Combustion chamber dimensions: 940mm (L) x 505mm (W) x 705mm (H)
Electronic automatic ignition; imported Meker burner
Automatic burner timer; automatic timer reminder
Ignition time can be set arbitrarily from 0 to 99.99 seconds; afterburning time and flame retardant time are automatically recorded and digitally displayed
Adjustable flame height and can be equipped with a flame temperature measuring device
"Push-pull" sample holder fixing device
Burner fixed on a sliding rail for easy operation; needle valve allows for flame height adjustment
Flow meter range: 0-1800cc/min
Power supply: 220V, 50Hz, 30W
