Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester

Brand Name:	GOLD
Model Number:	GD-ISO 15025
MOQ:	1set
Price:	USD 2900-3105/set
Delivery Time:	30days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Name:

Protective Clothing Flame Test Machine

Standard:

BS EN ISO 15025

Specification:

580× 580× 650mm

Horizontal Flame Height:

25mm ± 2mm

Power Source:

220V,50/60Hz

Burner Angle:

Adjustable To Horizontal, Vertical & 30 °

Vertical Flame Height:

40mm ± 2mm

Nozzle Orifice:

0.19mm

Packaging Details:

Standard Wooden Case

Supply Ability:

5 Set per 30 days

Highlight:

ISO 15025 flame spread tester

fire resistance protective clothing tester

burning flame spread test equipment

Product Description

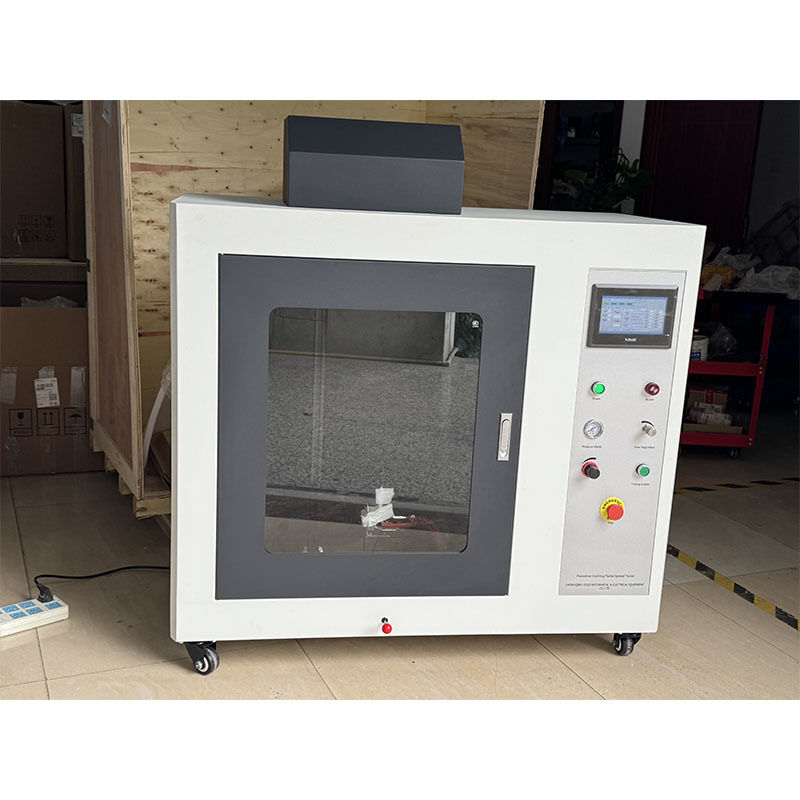

Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester

The Protective Clothing Burning Flame Spread Tester evaluates flame spread performance according to ISO 15025 standards. This specialized equipment simulates ignition risks to assess how protective clothing and fabric materials resist flame propagation under controlled laboratory conditions.

Testing Standards

BS EN ISO 15025

Technical Specifications

Parameter	Specification
Sample Holders Size	160 × 200mm and 80 × 200mm
Burner Nozzle Orifice	0.19mm
Flame Height	25mm ± 2mm
Timer Accuracy	0.1s

Key Features

Stainless steel combustion chamber (1200 × 600 × 1200mm) - elegant and corrosion-resistant
All specimen holders constructed from stainless steel
Standard burner with precise flame control: 25mm ± 2mm horizontally, 40mm ± 2mm vertically
Automatic time recording and storage with 0.1s timer accuracy
PLC control system with touch screen for intelligent testing operations
Imported pressure gauge and regulating valve for stable gas pressure
Imported needle valve for precise flame height control and stable flame
User-friendly operation with high level of automation
Dual specimen holders for surface combustion and bottom combustion testing
Automatic system ignition and extinguishing
Integrated flame height gauge for verification
Pulsed high-voltage electronic automatic ignition system
PLC automated timing eliminates manual stopwatch use
Automatic test report generation with recorded data
Customizable test and ignition times via touchscreen interface
Switchable test programs for surface burning and bottom edge burning
