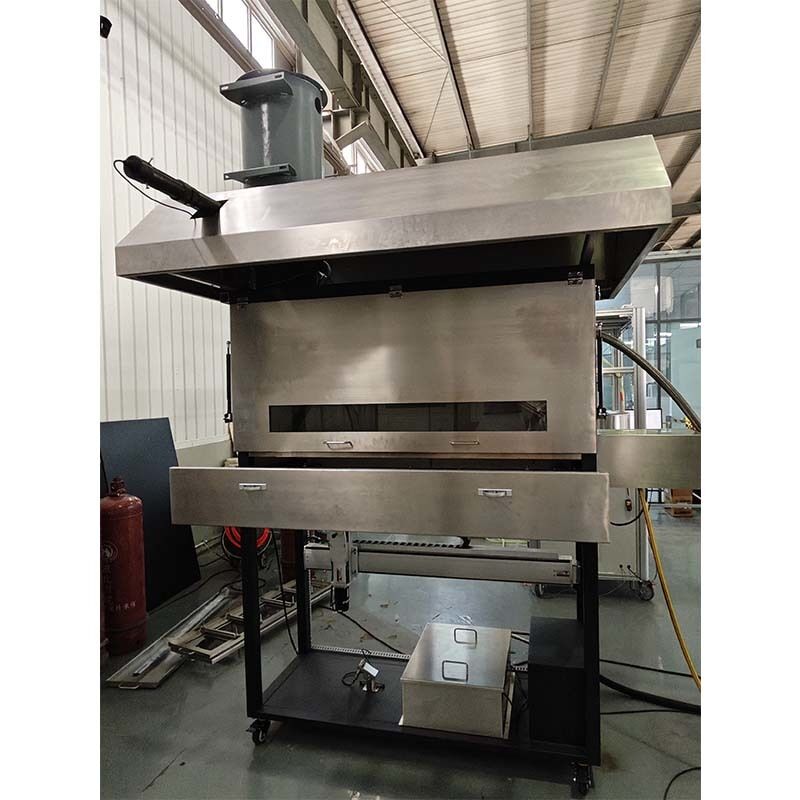

ISO 9239 Flooring Material Radiant Heat Flux Testing Machine ASTM E648

Brand Name:	GOLD
Model Number:	GD-ISO 9239
MOQ:	1set
Price:	USD 5000-6500/set
Delivery Time:	30days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Name:

Flooring Material Radiant Heat Flux Testing Machine

Standard:

ISO 9239-1,ISO 9239-2,ASTM E648

Test Chamber Dimensions::

1800 (L) X 1500 (W) X 2400 (H)

Electrical Control Cabinet Dimensions:

600 (L) X 1000 (W) X 1800 (H)

Power:

AC220V±10%,50Hz

Smoke Exhaust Velocity:

2.5 ± 0.2 M/s

Heat Flux Meter Measurement Range:

0～50KW/m²

Thermocouple:

Two K-types

Packaging Details:

Standard Wooden Case

Supply Ability:

5sets/Month

Product Description

ISO 9239 Flooring Material Radiant Heat Flux Testing Machine ASTM E648

The flooring material combustion performance tester measures the combustion performance of various flooring materials, including textile carpets, cork boards, wood boards, rubber boards, plastic flooring, and floor coatings. Test results accurately reflect the combustion performance of the flooring material and its substrate. The testing method involves igniting horizontally placed flooring material in an inclined thermal radiation field with a small flame within a test combustion chamber to assess the material's flame propagation capability.

Applicable Standards

ASTM E648 Standard Test for Critical Radiant Flux of Floor Coating Systems Using Radiant Heat Sources
BS EN ISO 9239-1 Fire Reaction Tests for Floor Coverings - Determination of Flame Propagation Performance Using Radiant Heat Sources
BS EN ISO 9239-2 Fire Resistance Tests for Floors - Part 2: Determination of Flame Propagation at a Heat Flux Level of 25 kW/m²
GB/T 11785 Determination of Flame Propagation Performance of Floor Coverings - Radiant Heat Source Method

Technical Specifications

Radiant Heat Source	Radiant surface dimensions: (300×450)mm±10mm; Radiant plate withstands temperatures up to 900℃
Propane Rotor Flow Rate	Propane gas flow rate: (0.026±0.002) L/s; Ignition flame height: (60～120)mm
Flue Gas Exhaust	Exhaust velocity: 2.5±0.2 m/s; Exhaust capacity: 39～85 m³/min; Hot-wire anemometer measures flow velocity with ±0.1 m/s accuracy
Water-cooled Heat Flux Meter	Measurement range: 0～50 KW/m²
Heat Flux Meter Accuracy	±0.2 Kw/m²
Heat Flux Meter Precision	Precision: <±2%

Key Features

Stainless steel test chamber with front-opening door design for easy cleaning
Inner walls made of high-temperature resistant calcium silicate board
Stainless steel fume hood above combustion test chamber
300mm x 450mm porous ceramic heat radiation plate at 30-degree angle
T-type porous burner with electric cylinder drive for open flame application
Optical system with 2900 ± 100 K color temperature incandescent lamp and light intensity sensor
Rotor flow meter for T-type burner flame height adjustment
Propane glass rotor flow meter with digital display for gas flow rate control
Integrated blower with Venturi mixture for test gas mixing
Domestic water-cooled heat flow meter (0-50 kW/m² range, <±2% accuracy, 0.2s response time)
Portable cooling water source - no external water supply required
Movable heat flux meter for radiant panel calibration with software-generated standard heat radiation flux curve
Foot switch for automatic flame spread time recording by computer
Chimney thermocouple and internal thermocouple with computer display
Infrared radiometer for radiant panel temperature detection
Industrial computer with testing software for complete combustion process monitoring
Variable frequency PID control for improved smoke exhaust stability
Software displays heat radiation flux values, smoke density curves, transmittance curves, and wind speed

Laboratory Requirements

Power supply: AC220V/2KW 50HZ with safety grounding wire
Temperature: 0～55℃
Humidity: <85%RH
Footprint: 3m×1.5m×2.7m (length×width×height)
