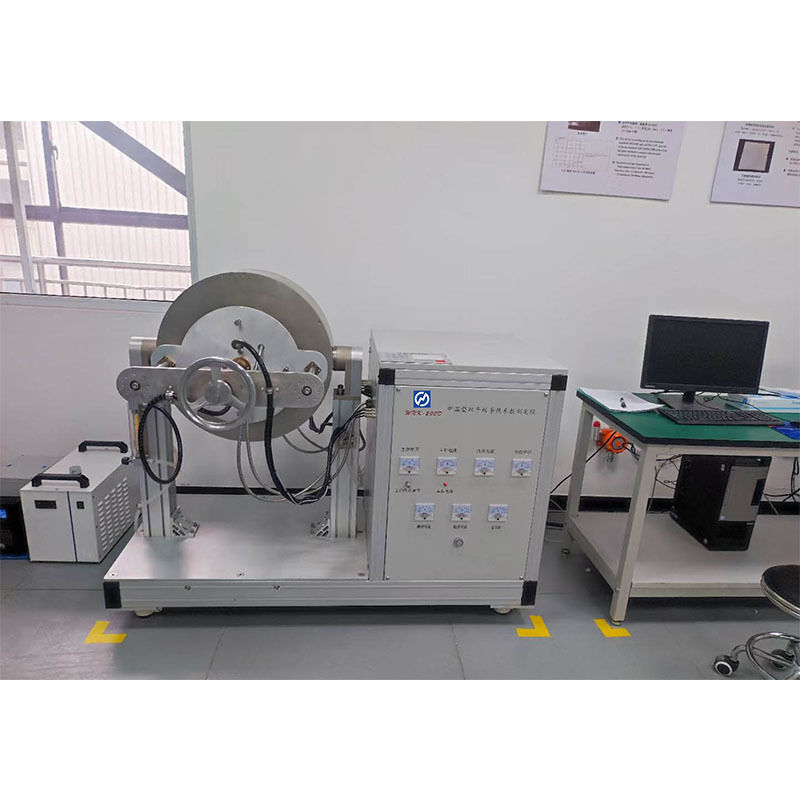

ASTMC177 ISO8302 Double Plate High Temperature Thermal Conductivity Tester

Brand Name:	GOLD
Model Number:	GD-ASTM C177
MOQ:	1 set
Price:	USD10000-15000/set
Delivery Time:	30 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product:

Double Plate High Temperature Thermal Conductivity Tester

Standard:

ASTM C177 ISO 8302

Power Supply:

AC 220V 2kw

Sample Pressure Adjustment Range:

0-1000N

Packing Size:

163X78X170 Cm&72X58X103cm

Temperature Resolution:

0.01 Degree

Thermal Conductivity Measurement Range:

0.01-1.00000W/(M.K)

Application:

Insulation Material Testing

Packaging Details:

Exported standard packaging

Supply Ability:

5sets per month

Highlight:

ASTMC177 thermal conductivity tester

ISO8302 high temperature tester

double plate flame spread tester

Product Description

ASTM C177 ISO 8302 Double Plate High Temperature Thermal Conductivity Tester

The dual-plate thermal conductivity meter is a high-precision testing device based on the steady-state protective hot plate method, designed for accurate measurement of thermal conductivity in various insulation materials. This instrument features an extensive temperature control range from -160℃ to 800℃, accommodating both soft materials (fibers, foams, felts) and rigid materials (sheets, ceramics, composites). With excellent testing accuracy, convenient sample clamping mechanism, and fully automated testing process, the system employs computer intelligent control to adjust temperature and power in real time, automatically determine thermal steady state, and generate compliant test reports.

The working principle follows a unidirectional steady-state thermal conductivity model. Two symmetrical samples are placed between a central hot plate and two cold plates. When temperature difference reaches stable state, thermal conductivity is calculated by measuring electrical power input, temperature difference across the sample, and thickness. The instrument utilizes dual high-precision internal and external protective temperature control systems with unique protective temperature difference measurement structure, ensuring one-dimensional heat transfer and eliminating lateral heat loss for reliable, repeatable measurement results.

Compliance Standards

ASTM C177
ISO 8302
GB/T 10294

Technical Parameters

Application Materials

Insulation Materials

Polyurethane, extruded board, styrene board, rock wool board, carbon felt, perlite, phenolic board, cork, rubber and plastic mineral wool, glass wool, glass fiber

Multilayer Materials

Insulation paper, insulation aluminum foil, aluminized polyester film-foam plastic-aluminized polyester film, aluminum foil composite light board

Refractory Materials

Refractory clay bricks, silica bricks, anti-carburization bricks, lightweight high-alumina bricks, aluminum silicate fibers, diatomaceous earth products, cement vermiculite products, asbestos boards, slag wool

Foam Materials

Polyethylene foam, polyvinyl chloride foam board, polypropylene foam board, foam glass, foam cement board, foam ceramic board, foam concrete

Aerogel Materials

Aerogel felt, nanoporous aerogel composite insulation material, aerogel particles, aerogel glass, aerogel ultra-thin interlayer clothing

Building Insulation Materials

Lightweight concrete, inorganic insulation mortar, ceramic insulation board, phenolic resin composite board, hard polyurethane board, wood fiber products
