Low Temperature General Purpose Thermal Conductivity Meter ASTM C1113 ASTM D5930

Brand Name:	GOLD
Model Number:	GD-ASTM C1113
MOQ:	1 set
Price:	USD5000-6500/set
Delivery Time:	30 days
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Product:

ASTM C1113 ASTM D5930 Thermal Conductivity Tester

Standard:

ASTM C1113,ASTM D5930,GB/T 10297,GB/T 11205

Temperature Range:

-30~100 °C

Acquisition Time:

1~20 S

Working Environment:

0~40 °C, ≤ 65% RH

Voltage:

220V Electrical Equipment

Application:

Auto Testing, Laboratory Testing, Lab Testing

Control:

Computer Control

Packaging Details:

Exported standard packaging

Supply Ability:

5sets per month

Highlight:

low temperature thermal conductivity meter

general purpose thermal conductivity tester

ASTM compliant flammability test equipment

Product Description

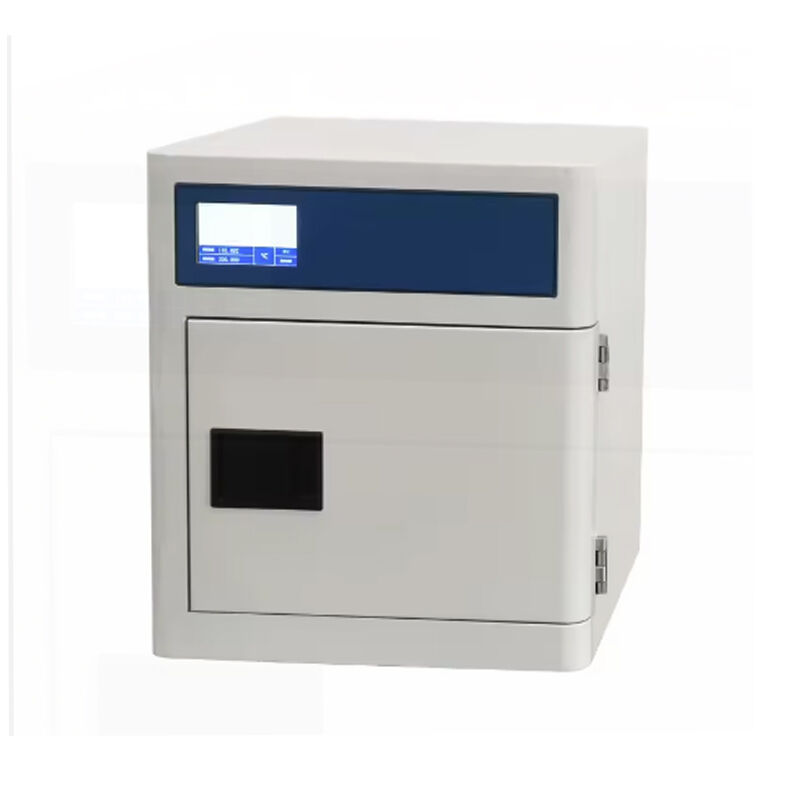

Low Temperature General Purpose Thermal Conductivity Meter

Compliant with ASTM C1113 and ASTM D5930 standards, this advanced thermal conductivity meter offers precise measurements across a wide temperature range with exceptional accuracy and efficiency.

Product Overview

This universal thermal conductivity meter operates within a temperature range of -30 to 100°C and features an automated control system that supports automatic measurement at multiple temperature points. The instrument delivers high testing accuracy, rapid measurement speeds, precise temperature control, minimal sample requirements, and user-friendly operation.

Compatible Standards

ASTM C1113
ASTM D5930
GB/T 10297
GB/T 11205

Technical Specifications

Measurement Principle	Transient hot-wire method
Temperature Range	-30~100 °C
Measurement Accuracy	± 3%
Measurement Range	0.001~50.0 W/(mK) (extended to 100 W/(mK))
Resolution	0.0005 W/(m*K)
Acquisition Time	1~20 s
Sample Size	Side length > 25mm (thickness requirement related to sample type); Colloid/Paste ≥ 50mL
Sample Shape	Blocks, Flakes, Pastes, Powders, Granules, Colloids
Data Transmission	USB
Operating System	Windows
Working Environment	0~40 °C, ≤ 65% RH
Reference Standard	ASTM C1113, ASTM D5930, GB/T 10297, GB/T 11205

Key Features

Wide measurement range: -30~100°C (optional -30~200°C), simultaneously meeting high and low temperature testing requirements
High degree of automation: Features automatic measurement and automatic multiple data acquisition
Fast testing speed: Measurement results obtained within minutes after sample temperature stabilization
Flexible sample requirements: No specific shape or size required
Direct measurement method: Directly obtains thermal conductivity without needing additional physical property data
Wide applicability: Compatible with block, flake, powder, paste, and colloid sample forms

Typical Applications

Synthetic materials: Ceramics, rubber, additives, fabrics, glass, paper, pharmaceuticals
Composite materials: Plastics, substrate materials, thermoelectric materials, phase change materials, insulation materials
Natural materials: Wood, food, grains, soil, rocks
Colloidal materials: Adhesives, greases, gels, jellies, thermally conductive adhesives, cosmetics, viscous solvents
