| Brand Name: | GOLD |
| Model Number: | GD-ASTM C518 |
| MOQ: | 1 set |
| Price: | USD7000-7465/set |
| Delivery Time: | 30 days |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram |

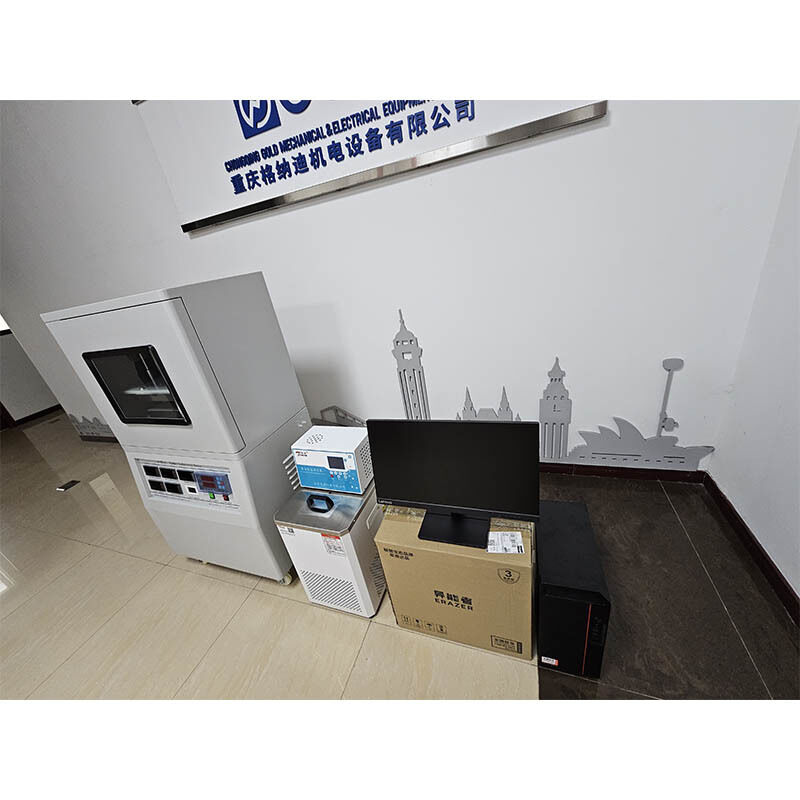

The thermal conductivity measured by the high-temperature resistant material thermal conductivity tester refers to the amount of heat transferred per unit time along the heat flow direction through a unit area of the material under a unit temperature gradient.
Based on the fundamental principle of Fourier one-dimensional plate steady-state heat conduction, this device measures the amount of heat transferred longitudinally through the hot surface of the sample to the cold surface and then absorbed by the water flowing through the central calorimeter per unit time in a one-dimensional temperature field during steady-state operation.
ASTM C518: Standard test method for determining steady-state thermal conductivity using a heat flow meter
ISO 8301: Determination of adiabatic steady-state thermal resistance and related properties using the heat flow meter method
| Parameter | Specification |
|---|---|
| Test Temperature | Variable, 0～70℃ |
| Cooling System | Self-developed high-precision low-temperature constant temperature water bath, temperature control accuracy ±0.001℃, integrated control by testing software |
| Temperature Measurement and Display Accuracy | ±0.01℃ |
| Programmable Data Points | 10 |
| Sample Size (L*W*H) mm | 300*300*50 (or 200*200*50), thickness 0~50mm automatically adjustable |
| Sample Pressure Automatic Adjustable Range | 0-1500N (16.5kPa) |
| Thermal Resistance Range | 0.05~5.0 m²*K/W |
| Thermal Conductivity Range | 0.002~0.5 W/m*K |
| Measurement Accuracy | Within ±3%, accuracy within ±1% for measuring the US standard plate NIST 1450E |
| Repeatability | 1% |
