NF P92-501 Thermal Radiation Flame Dripping Propagation Tester

Brand Name:	GOLD
Model Number:	GD-NFP92-501
MOQ:	1set
Price:	USD8000-9000/set
Delivery Time:	30days
Payment Terms:	L/C,D/A,D/P,T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Name:

Thermal Radiation Dripping Flame Propagation Test Machine

Standard:

NF P92-501

Power:

220V,50Hz,550W

Thermal Radiation Flux:

30KW/m2

Pressure Range Of Gas Regulating Valve:

<0.1 MPa

Dimension:

1900mm (W) X2100mm X (H) X 460mm (D)

Control:

1900mm (W) X2100mm X (H) X 460mm (D)

Wattmeter Accuracy:

Class 0.5

Packaging Details:

Standard Wooden Case

Supply Ability:

5sets/Month

Highlight:

NF P92-501 flame spread tester

thermal radiation flame tester

flame dripping propagation tester

Product Description

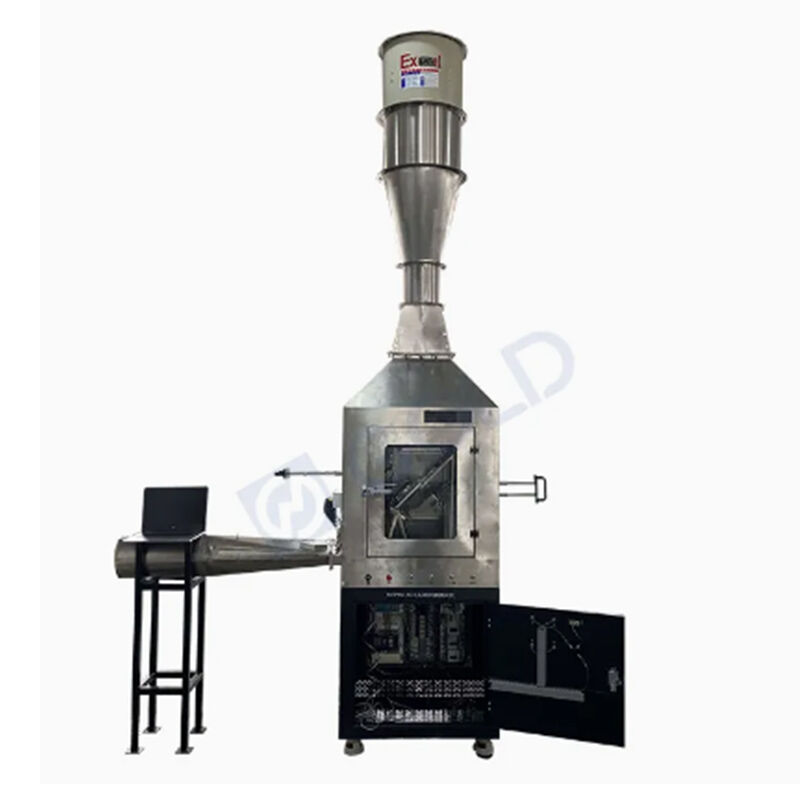

NF P92-501 Thermal Radiation Flame Dripping Propagation Tester

The thermal radiation flame spread tester is designed to evaluate the performance of rigid and flexible materials with a thickness exceeding 5 mm, in accordance with the French standard NF P92-501 for fire-retardant testing of building materials and railway rolling stock. The test principle involves subjecting the specimen to thermal radiation at an intensity of 30 kW/m², which may cause the release of combustible gases and trigger their ignition; the spread of the flame is observed, and data regarding the material's combustion are collected to estimate heat release. This equipment is suitable for conducting radiation-based fire resistance tests on materials used in railway rolling stock.

Applicable Standards

NF P92-501

Technical Specifications

Size	Width: 1900mm (74.8 inches) * Depth: 460mm (18.1 inches) * Height: 2100mm (82.6 inches)
Radiators rated power	500W
The power meter accuracy	0.5
The gas regulator valve pressure range	<0.1MPa
Power	220V, 50Hz, 500W
Shipping Weight	208Kg (Host: 158Kg; Tables: 50Kg)

Key Features

Stainless steel test cabinet, the inner wall is flame resistant material with transparent viewing window
Stainless steel tubular inlet device, equipped with filtration devices shield for indoor sources
45° of the test stand, equipped with stainless steel foot instructions to calculate the distance of flame spread
Heat radiation device can provide 30KW/m² heat flux
The power controller controlling the radiation output, adjustable heat radiation
The heat radiating panel display device operating power value, eliminating frequent calibration procedure
The stainless steel burner can ignite the combustible gas automatically
The imported needle valve can control the upper and lower burner flame height, with a flame height measuring
Lasting small flame device is be ignated before the test to convenient upper and lower ignition burners
One-quarter rotation stopper device to facilitate cutting the gas burner and ignite the flame
The top and the air inlet temperature thermocouple monitoring, real-time status display temperature difference value
The test software can automatically analysis index of flame and burning heat index
Test reports and data can be exported and printed, system has friendly user interface
The test data as follows: raw flame index: i-flame average height index: S- longest flame index: h-combustion heat index: C

Frequently Asked Questions

What's the delivery time?
About 1~2 months.
What's your guarantee terms?
The warranty of all products is 1 year. And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free. If onsite installation and training are required, please pay for tickets, accommodation and salary.
